DA 6890 Levantar

Downdraft extractor system With dimmable LED lighting and touch controls for convenient operation.

DA 6890 Levantar

Downdraft extractor system With dimmable LED lighting and touch controls for convenient operation.

Feature Highlights

  • Practical - 916mm wide cooker hood with motorised canopy
  • Powerful - 710m3/h on the booster setting
  • Practical - 15-minute automatic fan run-on
  • Suitable for every home - for extraction or recirculation
  • Ideal for combination with a panorama hob

Color

‐ Clean steel/Stainless steel

Purchase Support

Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm

08063980270

info@aplusng.com

Book Showroom Tour

Your exclusive advantages

Handcrafted in Germany

Each Miele cooker hood is unique.

Know-how and craftsmanship: All our knowledge is poured into every cooker hood, from development to production.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.
Active AirClean filter

A completely odour-free kitchen

Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.
To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.
Safety switch-off

Always on the safe side

Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
Edge extraction

Decorative panels instead of metal grease filters

Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.
Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.

Product data sheet

Construction type
Downdraft extractor system
Design
Colour
Stainless steel
Edge extraction
Operating modes
Type of air guide
Convertible
External operation possible

External operation possible

An extraction mode cooker hood can also be operated with an external blower outside the cooker hood; for instance, on the outside wall of the home or on the roof. External installation of the motor also means it can be installed where it causes the least nuisance. For a significant reduction in noise levels, the ducting system should be at least 5–7 m long. Exception: For the DA 6890, the internal blower can be converted to an external one using the DEXT 6890 conversion kit (only internally).
Active charcoal filter (order separately)
DKF22-1
User convenience
Electronic controls

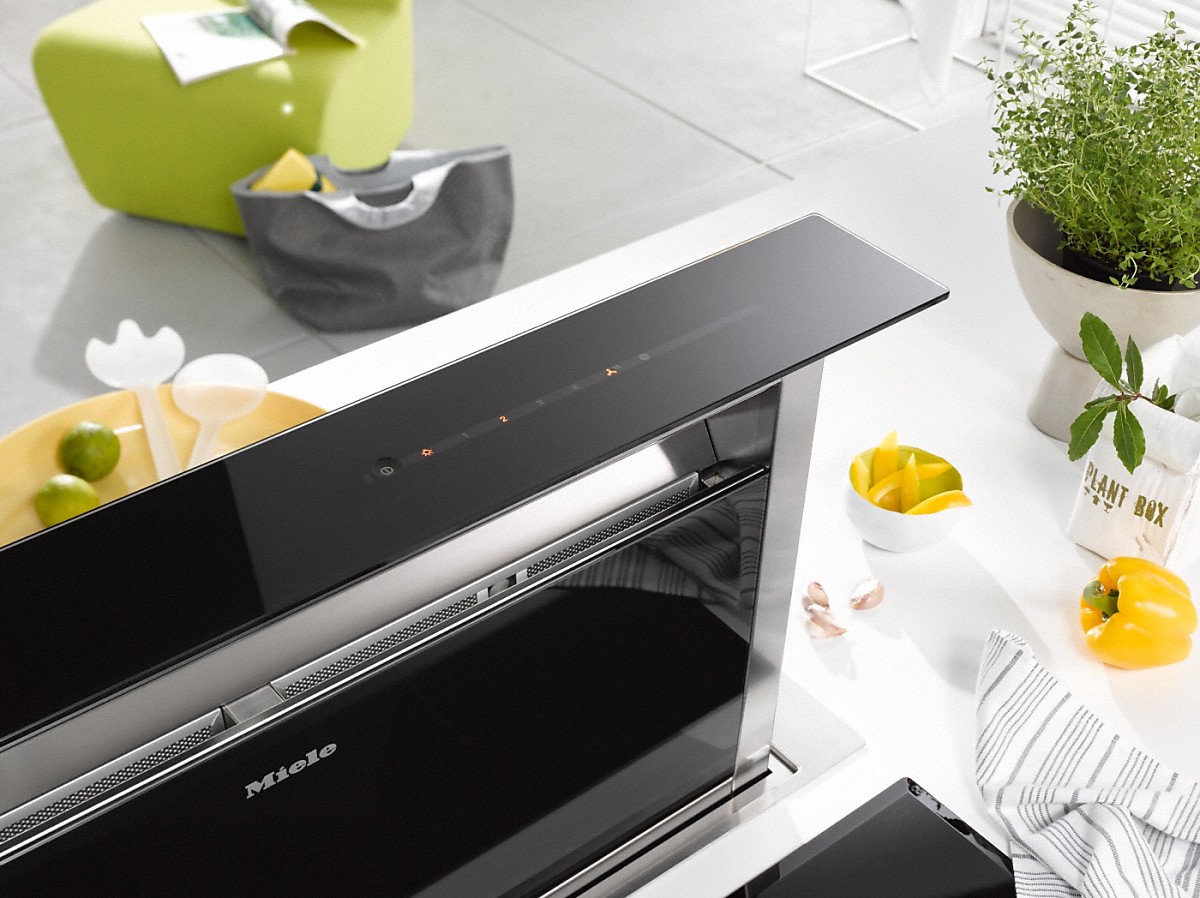

Touch-on-glass controls
Power levels (number without Booster level)
3
Booster level
Run-on time 15 min.
Grease filter saturation indicator
Hood in Motion
Efficiency and sustainability
Annual energy consumption in kWh/year
109,9
Filter system
Number of dishwasher safe metal grease filters
2
Lighting
LED
Number x W
1 x 7 W
Light intensity in Lx
300
Colour temperature in K
3.570
Dimmer function
Fan
Dual-action fan

High-quality and powerful motors

Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
AC motor
Air throughput with max. duct diameter in extraction mode (not for external version)
Air throughput in Level 1 (m³/h)
220
Air throughput in Level 2 (m³/h)
380
Air throughput in Level 3 (m³/h)
450
Air throughput in Booster level (m³/h)
710
Sound power in Level 1 (dB(A) re 1 pW)
47
Sound power in Level 2 (dB(A) re 1 pW)
57
Sound power in Level 3 (dB(A) re 1 pW)
60
Sound power in Booster level (dB(A) re 1 pW)
69
Sound pressure in Level 1 (dB(A) re 20 µPa)
34
Sound pressure in Level 2 (dB(A) re 20 µPa)
44
Sound pressure in Level 3 (dB(A) re 20 µPa)
47
Sound pressure in Booster level (dB(A) re 20 µPa)
56
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h)
230
Air throughput in Level 2 (m³/h)
375
Air throughput in Level 3 (m³/h)
435
Air throughput in Booster level (m³/h)
640
Sound power in Level 1 (dB(A) re 1 pW)
53
Sound power in Level 2 (dB(A) re 1 pW)
60
Sound power in Level 3 (dB(A) re 1 pW)
64
Sound power in Booster level (dB(A) re 1 pW)
74
Sound pressure in Level 1 (dB(A) re 20 µPa)
40
Sound pressure in Level 2 (dB(A) re 20 µPa)
47
Sound pressure in Level 3 (dB(A) re 20 µPa)
51
Sound power in Booster level (dB(A) re 1 pW)
61
Safety
Safety switch-off

Safety switch-off

Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
Single pane tempered glass
Technical data
Overall height for extraction mode and external mode cooker hoods in mm
1.051
-
1.051
Overall height for recirculation mode cooker hoods in mm
1.051
-
1.051
Canopy width in mm
916
Canopy height in mm
646
Canopy depth in mm
361
Net weight in kg
37,0
Length of supply lead in m
1,5
Standard plug fitted
Total rated load in kW
0,28
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Installation notes
Extraction ducting connection top/rear/side/below
Diameter of extraction ducting connection in mm
150
Optimal combination with hob
KM 6699-1, KM 7684 FL
